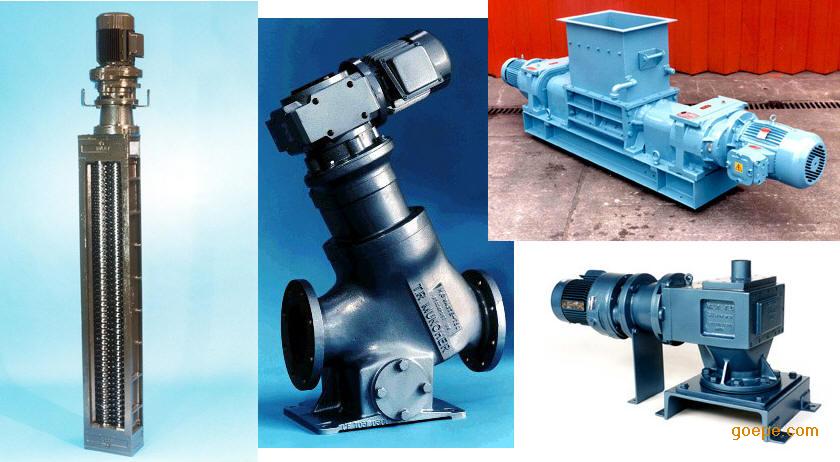

污泥切割机 -金沙1005

application information/工作参数

liquid/介质:

sludge/污泥

capacity/流量:

up to 40m³/hr

concentration/含固量:

1%

suction/入口压力:

flooded

s.g./比重:

assumed

calculated suction losses:

n/a

temperature/温度:

assumed 20  c

delivery/出口压力:

n/a

npsh(r)/气蚀裕量(r):

n/a

differential/压差:

n/a

viscosity/粘度:

not specified

priming time/启动时间:

n/a

ph:

not specifed

build/material specification-结构/材料

drive specification-驱动参数

casing/壳体:

cast iron/铸铁

absorbed power/消耗功率:

variable

cutters/刀片:

aisi 4140

installed power/电机功率:

1.5kw

spacers/隔垫:

aisi 4140,

5.5 mm thickness

starting method/启动方式:

d.o.l.

drive shaft/主轴:

grade 709m40

drive type/驱动方式:

fixed speed/定速

seal/密封:

mechanical seal/机封

electricity supply/电源:

380 / 3 / 50hz

coupling/联轴器:

close coupled/直联

motor enclosure/电机防护等级:

ip55

paint finish/喷漆:

mono standard

motor speed/电机转速:

1450 rpm

inlet/入口:

150 mm, bs4504, pn 16

drive speed/工作转速:

65 rpm

outlet/出口:

100mm, bs4504, pn 16

included/含

base plate/底盘

include/包含

sk30f - 90l4(n)

quality assurance

mono are the first progressing cavity pump manufacturer to be awarded this latest standard.  this ensures mono adhere to set procedures and measure their performance to continually make improvements.
