- 富兰克林粉碎性格栅授权中国区总代理dm-t20
详细信息
品牌：富兰克林 型号：dm-t20 加工定制：是 驱动方式：电动 *大流量：10000000 l/min 输送能量：9900 m3/h 材质：铸铁 性能：变频 公称压力：0.6 mpa 适用温度：40 ℃ 适用范围：污水 上海英帅机电设备工程有限公司代理美国富兰克林粉碎性格栅。
传统格栅是由一组(或多组)相平行的金属栅条与框架组成，倾斜安装在进水的 渠道，或进水泵站集水井的进口处，以拦截污水中较大的悬浮物及杂质，保证后续处理构筑 物或设备的正常工作，而粉碎型格栅是在格栅中还设置破碎设备的一种用以粉碎悬浮杂质 的格栅。目前粉碎型格栅主要有以下两种 —、转鼓式粉碎型格栅，这种格栅是目前粉碎型格栅应用较多的设备。该设备利用 连续旋转的空心转鼓将污水中的较大杂物加以拦截并使之流入下游破碎机粉碎，污水则通 过空心转鼓壁上的网状空隙流过空心转鼓，达到增加过水量的要求。由于转鼓结构受刚度 和耐冲击强度要求的限制，该设备转鼓的直径大小和转鼓高度亦均受到限制，因而过水量 受到限制；同时由于空心转鼓为全圆型结构，水流两次流过转鼓壁，增加了水头损失，因此， 其仅适用于中等流量的场合。 二、转碟式粉碎型格栅，这种格栅由多个转轴构成。每个转轴上都装有旋转碟片， 与对应的转轴形成过滤面。通过转轴旋转，形成缓慢的传输动作，使固体物越过格栅表面并 被送到排放点，水从旋转碟片之间流过。在一个和*后一个转轴上装有独立的篦子，把拦 阻到的固体杂物排放回主河道或集污区。该设备虽然可通过增加转轴数量的方法来增加通 过水的流量，但结构复杂，零部件数量繁多，设备成本较高，同时维护困难。
超过90年的历史，三代富兰克林米勒公司已经在小型化技术成为行业的领导者，涉及破碎机，粉碎机，破碎机，废水处理系统等。
富兰克林·米勒公司冰破碎机的制造开始于20世纪初。 1953年哈罗德galanty执掌为公司总裁。在他的指导下，公司扩展到化学加工等工业规模缩小的应用程序。多年来，我们的产品线和经验，不断壮大。坚持90年传统的质量，每个富兰克林米勒处理器和大小还原系统是建立在严格的标准，然后进行严格的检验和测试过程。随着富兰克林米勒处理器你放心*好的。
我们对客户的承诺始于我们广泛的工程，研究和开发。我们的测试实验室可对客户资料的测试。我们专注于配套成熟的金沙软件免费下载的解决方案，以您的具体过程中的问题，定制的完全适合的系统。我们将故障减到*低，工厂规模及业务遍及世界各地。

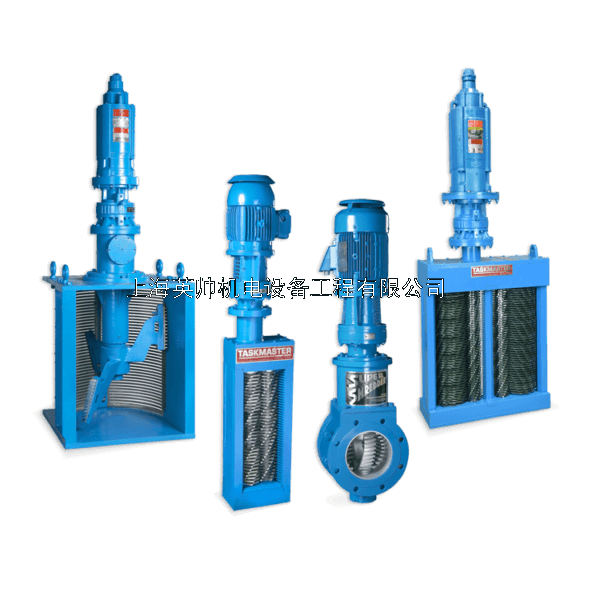

super shredder® high flow inline disintegrator
the super shredder® inline disintegrator reduces a variety of tough sewage solids to fine bits while remaining practically invisible to the flow. this unit employs a dependable low speed, high torque mechanism that provides effective operation and long life in sewage and sludge pipeline applications.
the super shredder was specifically designed for high capacity, durability and ease of maintenance. because of its unique open spherical cutter design, it can handle higher flows
than any other inline grinder made. its cutting elements are constructed of hard-faced stainless steel with a surface hardness in excess of rc60.
with only two cutting elements, the super shredder is unsurpassed for ease of maintenance.
dimminutor® open channel disintegrator
the dimminutor® offers effective reduction of wastewater solids in straight through channels and wetwells. this powerful unit reduces plastics, wood, rags, disposables and other solids to fine bits easily processed by downstream equipment. the dimminutor’s heavy precision construction, dependable operation and simplified maintenance have earned it a solid reputation amongst operators and engineers worldwide.
high capacity, low headloss design
the dimminutor’s unique design employs no seals or bearings below the cutters, near the gritty channel floor. the dimminutor employs
a smooth, continuously rotating design with high torque always available on demand. as its three bi-directional rotary cutters intermesh at close clearance
with stationary cutters, solids are finely reduced to a size small enough to pass through a sizing screen. the dimminutor is designed for unobstructed flow even during reversing cycles.
taskmaster® tm8500 a voracious twin shaft grinder
the taskmaster® tm8500 features powerful twin shaft size reduction capabilities, easy maintenance and exceptional durability. the taskmaster reduces wood, rags, paper, sewage, sludge, tampons, cardboard, plastic, fabrics and waste items into fine particles, facilitating further processing or disposal. with the taskmaster ’s unique cutter cartridge technology, individual cutter and spacer disks are replaced with a few one-piece multi-cutter
elements, greatly enhancing unit strength and simpli- fying maintenance.
the taskmaster
tm8500 series is available in single (2-shaft) and duplex (4-shaft)
configurations. these versatile units are used for sewage treatment, sludge, pumping stations, institutional waste and bulk solids reduction applications.
the taskmaster can be supplied with a unique flange housing for inline installation. installed inline, this unit protects pumps from ragging, installs in sludge recirculation lines, and protects filter presses and centrifuges from damage or premature wear. its unique drop-in housing design facilitates fast and easy removal of the cutter assembly for periodic maintenance without disturbing the pipe system. additionally, both inline and channel units are supplied with a high-flow side rail design for high capacity.
taskmaster® titan® unique high-flow channel grinder
the taskmaster® titan is a unique high-flow channel grinder that features counter-rotating, intermeshing stacks of cutters. but unlike other grinders, the titan’s second stack
has a much larger diameter than the first. this innovative design results in a dramatic increase in liquid handling capacity as well as a superior ability to process large solids.
the titan is available in single (2-shaft) and duplex (4-shaft) versions. model tm14000/ tm14000d (3-5hp) single and duplex units handle up
to 16 mgd (700 l/s). models tm20000/tm20000d (3-5 hp) single and duplex units handle up to 19 mgd (832 l/s). models tm22000/tm22000d (10hp) single and duplex units handle up to 29 mgd (1270 l/s). these massive units reduce tough institutional solids such as towels,
blankets, shirts, pants, and bed sheets that can choke pumping systems and cause backups.
in short, the titan provides excellent performance and high capacity without the need for auxiliary diverters or additional power.

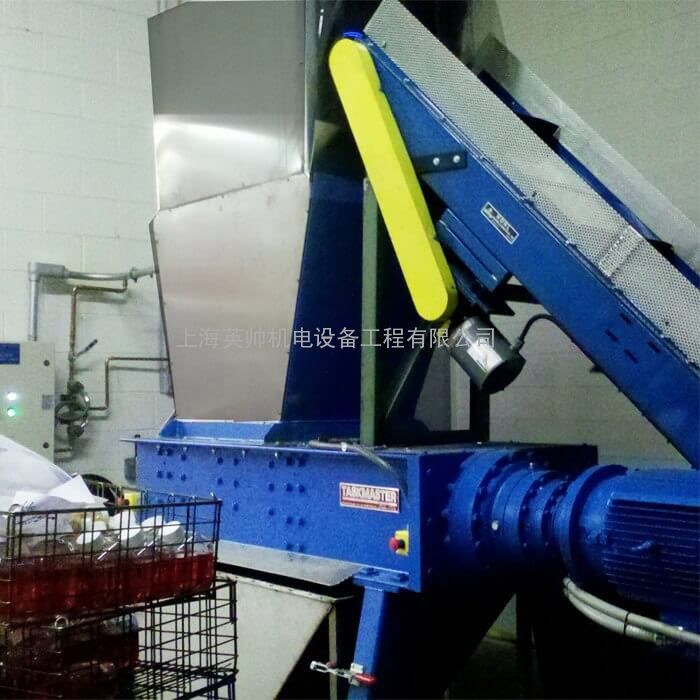

taskmaster® tm1600 heavy-solids shredders
the taskmaster® model tm1600 is a powerful workhorse that can shred heavy solids in both gravity and liquid systems. the taskmaster tm1600 can be installed either horizontally with
a stand, hopper or flange adapter, or vertically for channel or pipeline applications. these units have been field tested and proven unmatched for reliability and performance.
typical applications include gravity and conveyor-fed sewage screenings, in-channel raw sewage, correctional institution effluent, documents, product rejects and returns, garments, filters, packaging materials, plastics, turnings, electronic components and waste materials. a variety of cutter configurations is available to meet varied application requirements.
the tm1600’s heavy-duty construction features include: 2-3/4” hardened hex shafting, mechanical seal shaft protection, up to 20 hp electric, hydraulic or submersible motors and direct inline or optional space saving right-angle gear drive. options include pipe flanges, cleaning combs, stainless construction, wetwell frames and more.
spiralift® sl/slx grind, screen, wash, transport
and de-water
the spiralift® sl features two technologies in one – grinding and screening for a uniquely effective system. this unit fine screens, washes and conveys solids out of a channel. the discharge is a homogenous, ground filtrate which is washed, compacted and conditioned - ideal for landfill disposal. the spiralift features shaftless screw technology, stainless auger housing and smooth and reliable operation. it’s durable segmented
brushes provide for far easier brush maintenance than strip brushes,
the spiralift® slx is a heavy-duty system specifically built for screening of heavy prison and institutional wastewater effluent. this powerful system effectively handles large, concentrated solids including clothing, sneakers, sheets, blankets, wood and other
debris too large for standard-duty systems to handle.
spiralift® slt/sld enhanced screening with
the powerful titan® grinder
the spiralift® slt features a channel-mounted 12 inch (300 mm) diameter screen along with a taskmaster® titan® (tm14000 series) twin-shaft grinder to pre-condition solids. a stainless steel
channel divider separates screened liquids from solids- laden flow. the solids are directed to and captured by the spiralift screen, then discharged at
a suitable height, cleaned, compacted and homogeneous.
the spiralift® sld features a 16” (400 mm) channel screen coupled to a taskmaster titan duplex (tm14000d series) twin shaft grinder. the solids-laden flow is
discharged from the grinder in the center and screened by a downstream spiralift screen. two channel dividers are provided to separate the pre-screened flow from the center solids- laden flow. this design provides optimized capacity.
the taskmaster titan duplex grinder conditions solids as part of the spiralift sld system.
spiralift® slv efficient screening in tight
locations
the spiralift® slv is a unique fine screen that separates and conveys solids vertically. this unit combines the grinding technology of the taskmaster® tm8500 with a vertical channel screen to provide fine screening of solids entrained
in liquid flows.
because of its small footprint, the slv fits in extremely tight locations such as pump stations and wet wells. in fact, the slv fits where no other screen can be placed. the slv offers a unique split screen design for easy interior access for maintenance such as brush replacement without the removal of the unit from the wet well.
the screen features a stainless steel housing, carbon steel auger and helical gear drive.
spiralift® sr septage receiving stations
the spiralift® septage receiving station is designed to receive, screen and separate septage solids. the spiralift incorporates a grinder, fine screening shaftless screw system, spray wash, control system and more. these units wash and efficiently compact screenings by up to 40%. the processed solids are conveyed to a convenient elevation for discharge into a bin, bag or conveyor.
the spiralift sr features an oversized stainless steel tank enclosure and screening system designed for abundant capacities to quickly offload septage trucks. the unit is provided with a compaction zone with backwash system that reduces the moisture content of the discharged screenings.
the s270-srh hauler station is a comprehensive control system that provides an automated interface for septage truck haulers to securely access and operate a spiralift® sr septage receiving station without the need for plant personnel
-
