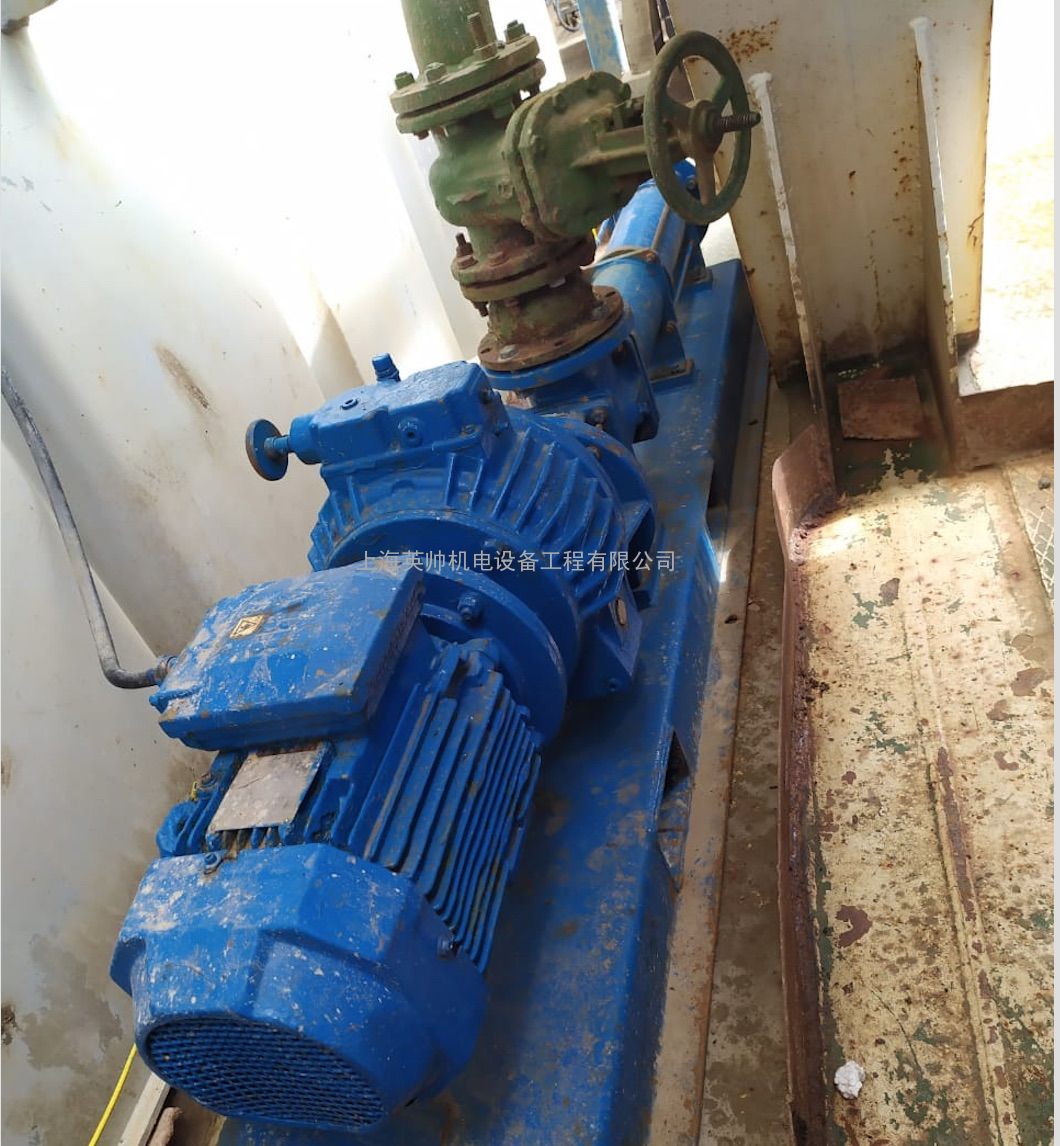

- 莫诺mono石油污水螺杆泵cb071ae1r8/g8b
详细信息
性能：防爆 材质：不锈钢 驱动方式：电动 流量：20 m3/h 吸入口径：125 mm 排出口径：125 mm 转速：240 rpm 扬程：30 m 工作温度：40 ℃ 排出压力：0.3 mpa 品牌：mono 型号：cb071ae1r8/g8b 上海英帅机电设备工程有限公司代理销售莫诺螺杆泵及维修配件，提供现场安装维修服务。
mono螺杆泵cb071ae1r8广泛应用于石油污水处理，质量稳定，性能良好，有质保。
inclusions 1 pump:- cb071ae1r8/g8bp – cast iron body, nitrile rubber stator, stainless steel hcp rotor c/w 125 mm, bs en1092, pn16/11 inlet/outlet flanges.
泵：cb071ae1r8/g8bp-铸铁机身，丁晴橡胶固定片，不锈钢hcp 旋转 c/w 125mm,bs en1092,pn16/11
输入/输出法兰2 drive:- mechanically variable speed drive – 59 – 315rpm @50 hz, 7.5kw ip56 tefv, eexde iib t4, 400v/3ph/50hz. suitable for use in a zone 1 hazardous area.
电机：机械变速电机59 – 315rpm @50 hz, 7.5kw ip56 tefv, eexde iib t4（防爆型电机），400v/3ph/50hz. 适用于 a危险区域3 dry run:- dry run probe, panel mounted controller & atex shunt diode barrier
干运行:-干运行探头，面板安装控制器和atex并联二极管屏障4 base plate:- fabricated mild steel standard base plate
底盘：低碳钢标准底板5 painting:- mono two pack acrylic – blue to ral5005
涂层：mono双包丙烯酸-蓝色到ral50056 documentation:- operation & maintenance manual. 1 off 必备资料：操作手册和维护手册1份
stator temperature protection – this will consist of a temperature probe c/w din connector and a din (omega) rail mounting control unit type suitable for a 230vac supply. the control unit and probe will be supplied loose and the pump's stator wall will be suitably drilled to accept the temperature probe. the probe should be connected to the s.t.p. control unit using three-core overall screened cable with a minimum of 7/0.2mm conductors of tinned copper. full operating and installation instructions will be provided
固定片的温度保护-这将包括一个温度探头c/w din连接器和一个din(欧米茄)轨道安装控制单元类型，适用于230vac电源。控制单元和探头将是松散的，泵的固定片壁将适当钻孔以接受温度探头。探头应使用三芯整体屏蔽电缆与至少7/0.2mm的锡铜导体连接到s.t.p.控制单元。将提供完整的操作和安装说明
ce mark
the equipment detailed in this proposal will conform to the requirements of the eec machine directive 2006/42/ec and any other applicable eec directives. equipment will be supplied with the relevant declarations of conformity.
欧盟标志
本建议中详细的设备将符合eec机器指令2006/42/ec和任何其他适用的eec指令的要求。设备将提供相关的符合性声明
atex area classification
unless stated otherwise, all equipment quoted is in full compliance with ec directive 94/9/ec (atex) that covers equipment and protective systems intended for use in potentially explosive atmospheres. the equipment offered will be marked with the appropriate ex symbol and supplied with the relevant certificate of conformity in accordance with the directive.
atex区域分级
除非另有说明，所有引用的设备都完全符合ec指令94/9/ec (atex)，该指令涵盖了用于潜在爆炸环境的设备和保护系统。所提供的设备将以适当的ex符号标示，并按照指示提供相关的合格证书。
-
