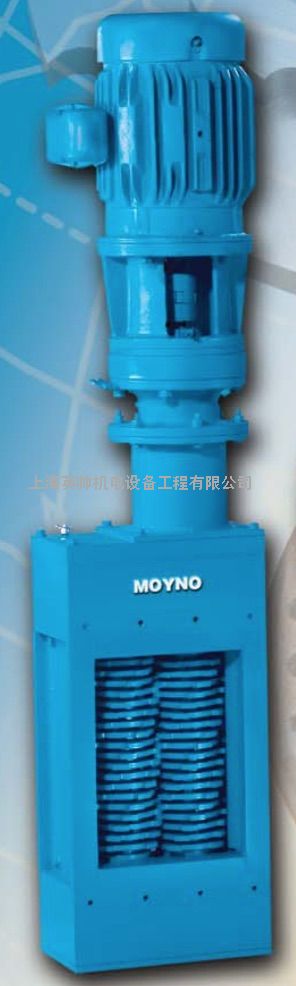

mono污泥切割机cb201cgt7a2 -金沙1005

liquid/ 介质: sludge/污泥
capacity/ 流量: up to 40m 3 /hr concentration/ 含固量: 1%
suction/ 入口压力: flooded s.g./ 比重: assumed
calculated suction losses: n/a temperature/ 温度: assumed 20 c
delivery/ 出口压力: n/a npsh(r)/ 气蚀裕量(r) : n/a
differential/ 压差: n/a viscosity/ 粘度: not specified
priming time/ 启动时间: n/a ph: not specifed
build/material specification- 结构/ 材料 drive specification- 驱动参数
casing/ 壳体: cast iron/铸铁 absorbed power/ 消耗功率: variable
cutters/ 刀片: aisi 4140 installed power/ 电机功率: 1.5 kw
spacers/ 隔垫: aisi 4140,
5.5 mm thickness
starting method/ 启动方式: d.o.l.
drive shaft/ 主轴: grade 709m40 drive type/ 驱动方式: fixed speed/定速
seal/ 密封: mechanical seal/机封 electricity supply/ 电源: 380 / 3 / 50hz
coupling/ 联轴器: close coupled/直联 motor enclosure/ 电机防护等级: ip55
paint finish/ 喷漆: mono standard motor speed/ 电机转速: 1450 rpm
inlet/ 入口: 150 mm, bs4504, pn 16 drive speed/ 工作转速: 65 rpm
outlet/ 出口: 100 mm, bs4504, pn 16 control panel/ 控制箱: included/含
base plate/ 底盘 include/包含 drive reference/ 驱动： sk30f - 90l4(n)
