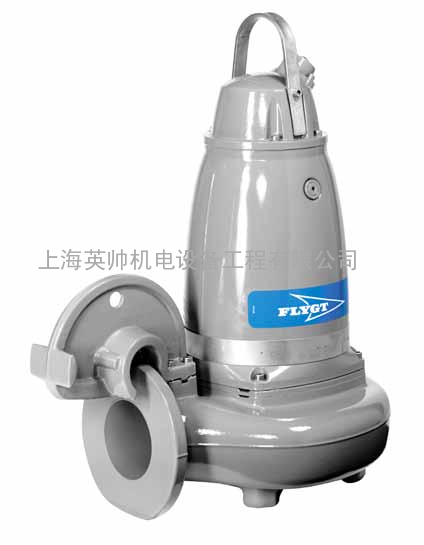

rough and rugged, flygt f-pumps
tackle the toughest wastewater chal-
lenges. by cutting solids or fibers
down to size, flygt chopper pumps
ensure reliable, trouble-free opera-
tion that’s energy efficient, too.
buy a ready-to-use flygt f-pump or
upgrade your flygt n-pump for out-
standing performance in heavy-duty
wastewater applications.
well proven performance
flygt f-pumps demonstrate un-
matched reliability in installations
worldwide. these chopper pumps
perform like no other, handling what-
ever goes down the drain – from plas-
tic bottles and wood to clothing and
motor cables.
flygt chopper pumps cut sump
problems down to size
introduction
cost-effective operation
flygt f-pumps transport tough solids
and reduce operation and mainte-
nance costs, too. under extreme con-
ditions, our energy-efficient chopper
pumps run continuously with sus-
tained hydraulic efficiency in heavy-
duty applications such as:
• heavy-duty wastewater applications
• food processing facilities
• pulp and paper mills
• heavy-duty sludge pumping
• aqua culture
• agricultural facilities
• correctional facilities
• public access facilities
the f-pump advantage
broad range capacity
• ratings from 1.7
to 47 kw
• flow up to 200 l/s
• heads up to 81 m
• cuts tough solids
• patented n-technology
• innovative design
• sustained high
efficiency
• self-cleaning ability
• fewer unplanned ser-
vice calls
• factory-tested for high
performance
3
chop it up with the proven
n-impeller
design
chopper
insert ring
guide pin
relief
grooves
pump housing
n-impeller
advanced n-technology
flygt f-pumps feature patented flygt n-technology,
which is renowned for its self-cleaning capabilities
and sustained high efficiency.
virtually maintenance free
flygt f-pumps feature the patented flygt
n-impeller, which rotates inside a chopper insert
ring. this rotation cuts all types of hard-to-pump
solids, such as fibrous material, textiles and other
debris into small, easy-to-pump pieces.
self-cleaning components
to prevent clogging, the flygt n-impeller features
a backswept design which together with the relief
groove in the insert ring sweeps solid objects along
the leading edge.
sustained high efficiency
all components work together without sacrificing
the pump’s overall hydraulic performance. pump
efficiency consistently remains high while keeping
energy costs low.
wear-resistant material
flygt f-pump components consist of hard-iron ma-
terial (hrc 60), which has proven to have exception-
al wear resistance in tough wastewater applications.
