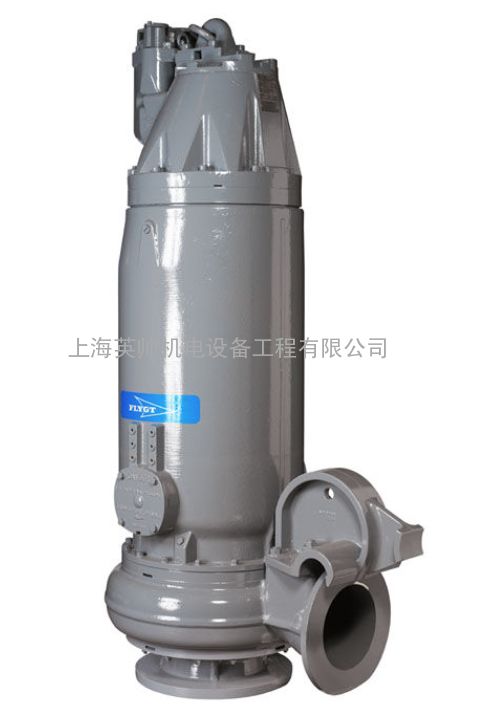

- 赛莱默itt飞力潜水泵cp3312/766
详细信息
品牌:itt 类型:污水潜水泵 驱动方式:电动 流量:1511 m3/h 泵轴位置:边立式 性能:变频 扬程:30 m 转速:2900 rpm 吸入口径:300 mm 排出口径:300 mm 型号:cp3312/766
note: picture might not correspond to the current configuration.
general
shrouded single or multi-channel impeller pumps with large throughlets and single v olute pump casing f or liquids containing solids and f ibres. cast iron design with double sealing technology.
cp 3312/766 3~ 630 performance curve
pump
discharge flange diameter
suction flange diameter impeller diameter number of blades throughlet diameter
[m]
head56 52 48 44 40 36 32 28 24 20 16 12
8 4 0
[%] 60 40 20 0
[kw] 120 80 40 0
[m]
8
300 mm
350 mm 545 mm 3
102 mmmotor motor #
stator variant frequency rated voltage number of poles phases
rated power rated current starting current rated speed
c0766.000 43-56-6id-w 180kw
2
50 hz 380 v
6
3~
180 kw 355 a 2110 a 985 rpm80.7%
power factor
1/1 load 0.81 3/4 load 0.75 1/2 load 0.63motor efficiency
1/1 load 3/4 load 1/2 load
95.4 % 96.0 % 96.2 %
-
